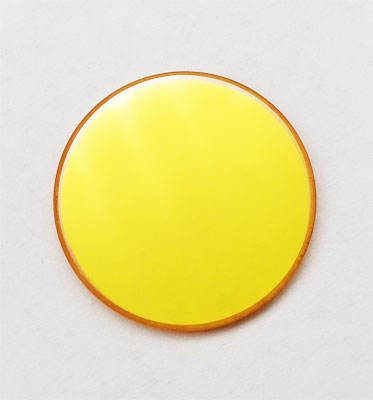

5 mm ZnSe Round Optical Window, AR Coated

Product description

The ZnSe round protective window is designed for high-performance applications in thermal imaging and medical devices. With a transmission range of 0.5 - 20 µm, it is ideal for CO2 laser optics operating at 10.6 µm. This window offers high accuracy and low absorption, making it suitable for demanding environments. Its customizable options ensure that it can meet specific application requirements, while its robust properties enhance reliability across various applications.

Key Features

Transmission range: 0.5 - 20 µm, suitable for thermal imaging and medical applications.
High accuracy with flatness of N<λ/10@633nm for precision optics.
Clear aperture >90% ensures optimal light transmission.
Low absorption coefficient enhances performance in high-power CO2 laser systems.
Customizable sizes and coatings available to meet specific project needs.

Applications

Thermal Imaging, Medical

Specification Summary

Item	Value
Material	ZnSe
Shape	Round
Diameter	5 mm
Thickness	Custom
Coating	anti-reflective (AR)
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Spare Parts Type	protective window
Wavelength	10.6um
Power	100-3000 W(0.13-4.02hp)
Laser Type	CO2 Laser
Accessory Type	protective window
Key Selling Points	High-Accuracy
Warranty	3 Months
Condition	New
Weight (Kg)	0.05
Flatness	2L-L/8 @633nm
Parallelism	< 3 arcmin
Clear Aperture	>90%
Bevel	protective bevel

FAQ

Can I get custom sizes for the ZnSe windows?

Yes, customizable sizes are available to meet specific application requirements.

What is the minimum order quantity (MOQ) for these windows?

The MOQ is not specified, allowing for flexibility in ordering.
