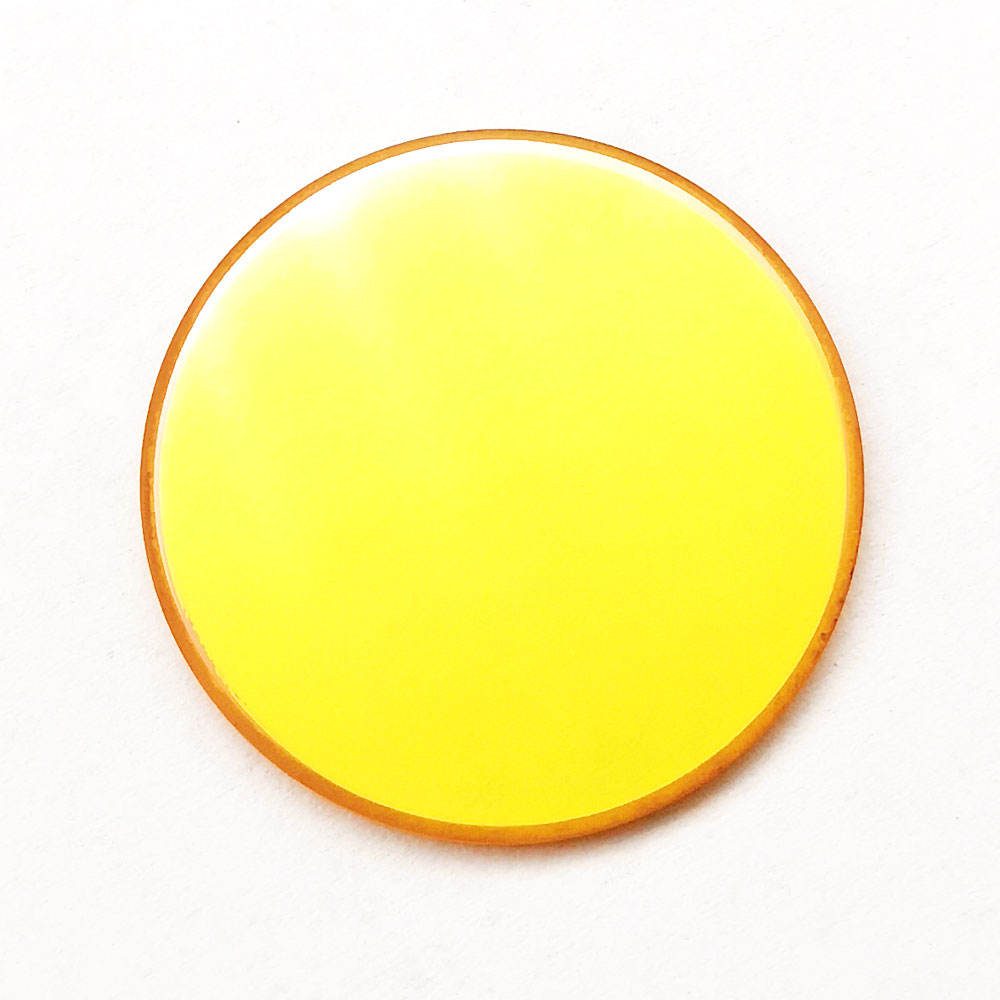

5 mm ZnSe Round Optical Window, AR Coated

Product description

Zinc Selenide (ZnSe) windows are ideal for thermal imaging applications, particularly in the 8-14 μm and 10.6 μm CO2 laser bands. With a high transmittance of over 99.5% at 10.6 μm, these round windows ensure optimal performance in thermal and laser systems. Manufactured with advanced techniques in Hubei, they provide excellent optical quality and reliability, making them suitable for various environments, although care is needed due to the material’s softness.

Key Features

High transmittance >99.5% at 10.6 μm for superior optical performance.
Available in diameters from 5.0 mm to 500.0 mm to fit various applications.
Customizable options including AR coatings for enhanced performance.
Flatness of 1 Lambda/10 @632.8nm ensuring high precision in optical applications.
Parallelism of <3 arcsec for improved alignment in optical systems.

Applications

Thermal Imaging

Specification Summary

Item	Value
Material	ZnSe
Shape	Round
Diameter	5 mm
Thickness	Custom
Coating	anti-reflective (AR), uncoated
Transmission bands	LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm)
MOQ	—

Full Specifications

Parameter	Value
Type	CO2 Laser Protective Window
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	customized
Wavelength	10.6μm
Flatness	1 Lambda-Lambda/10 @632.8nm
Parallelism	<3 arcsec
Transmission	>99.5% @10.6um

FAQ

What custom sizes are available?

ZnSe windows are available in diameters ranging from 5.0 mm to 500.0 mm.

What are the tolerances for these windows?

Size tolerance is ±0.1 mm, with a clear aperture of ≥90%.

Is there a minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified.
