1 / 6Optical Windows

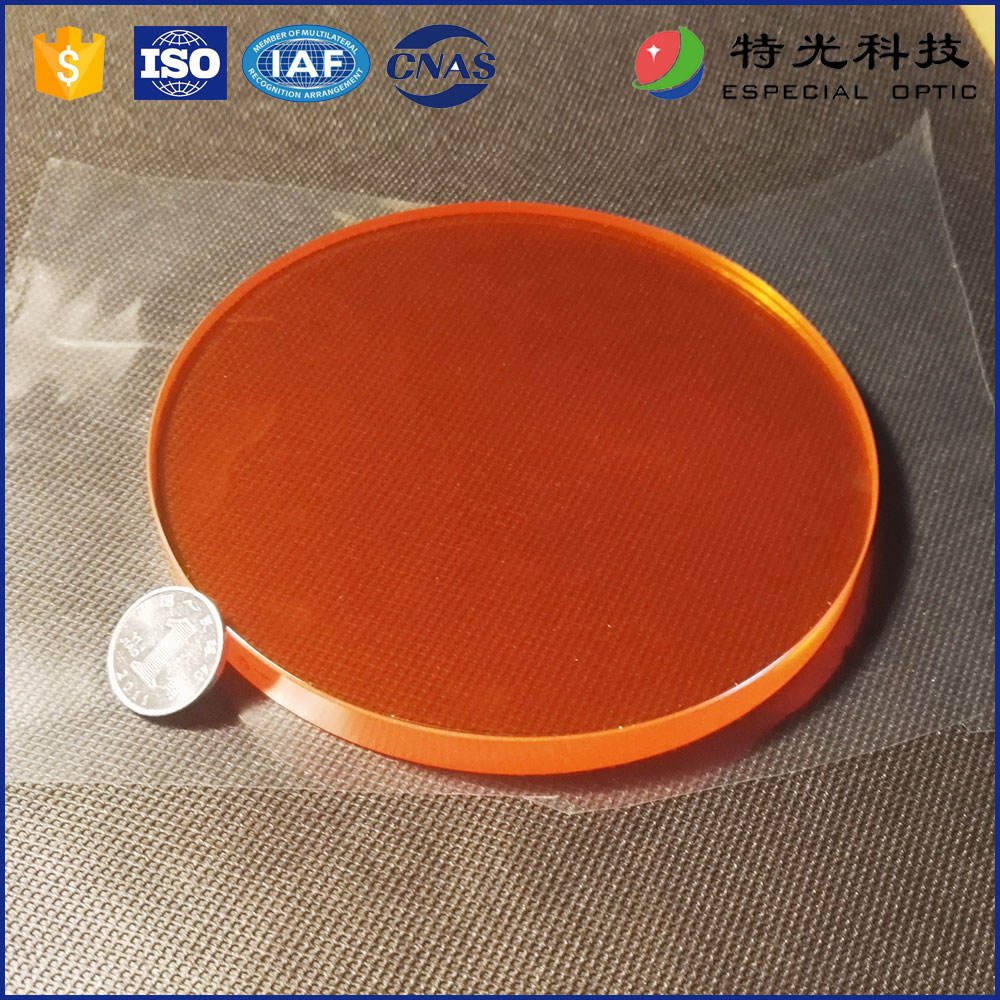

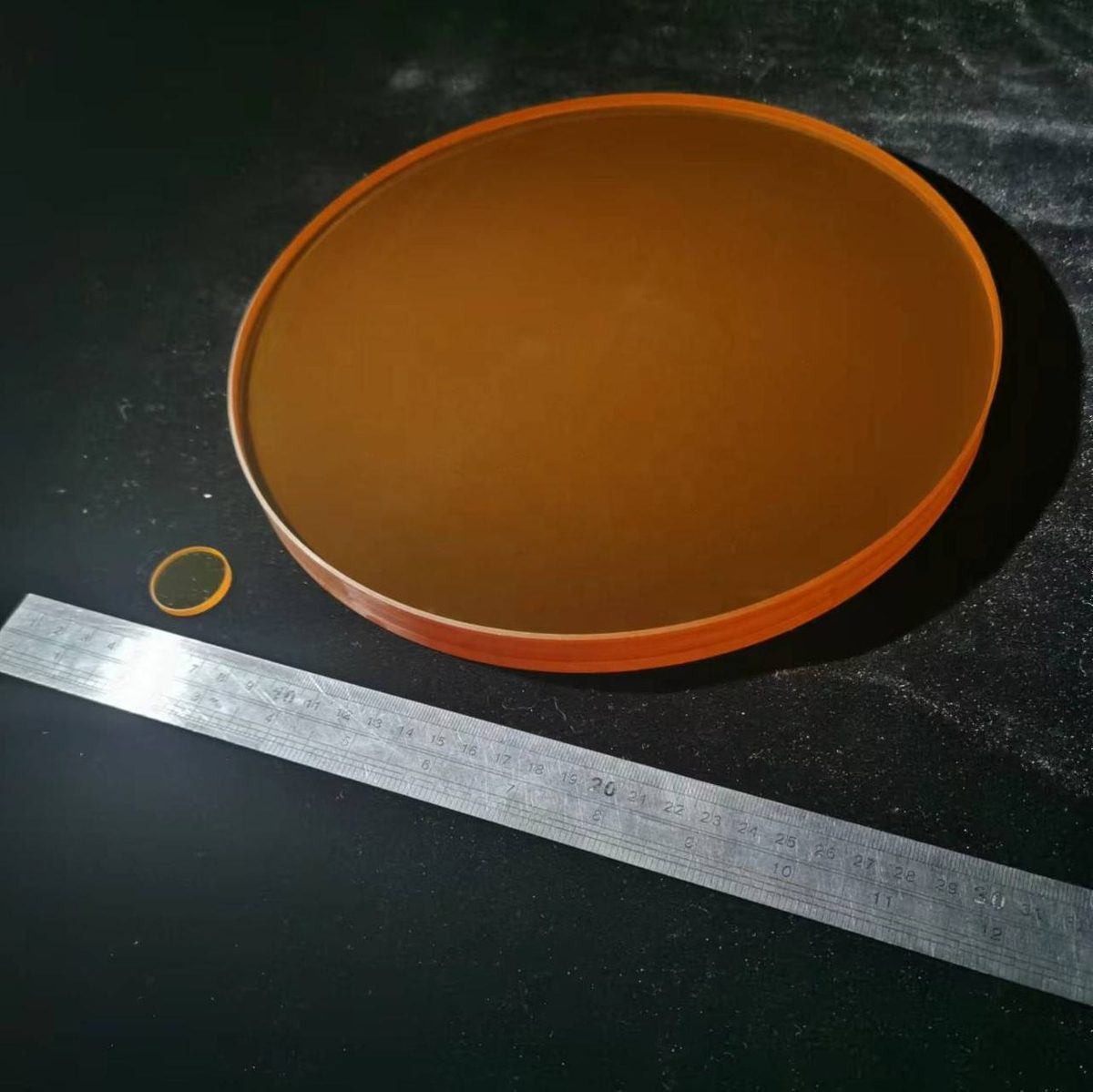

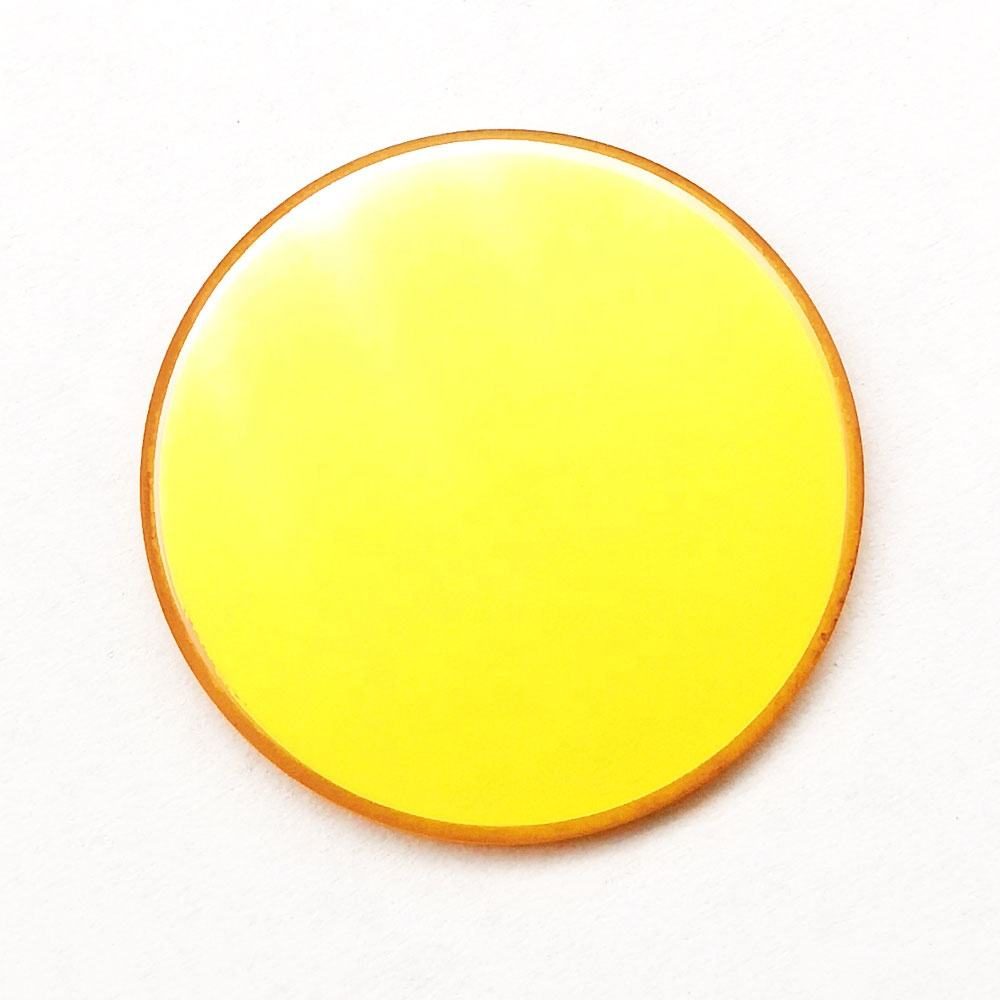

Custom Size ZnSe Round Optical Window, AR Coated
CVD ZnSe windows for thermal imaging and medical applications, customizable with high optical performance.
Core attributes
- Material
- ZnSe
- Shape
- round
- Thickness
- 0.5–50 mm
- Coating
- ar
Product facts
Key attributes
- Material
- ZnSe
- Shape
- round
- Thickness
- 0.5–50 mm
- Coating
- ar
Product description
The CVD Zinc Selenide (ZnSe) window is designed for applications in thermal imaging and medical devices, providing exceptional transmission across a wide spectral range of 0.5 - 20 µm. Its low absorption coefficient and high resistance to thermal shock make it ideal for high-power infrared laser optics. This window is suitable for various configurations, including flat windows with customizable features to meet specific application needs.
Key Features
- Transmission range: 0.5 - 20 µm for versatile application fit.
- Flatness: 2 Lambda - Lambda/8 @632.8nm ensures high optical performance.
- Parallelism: < 3 arcmin - 3 arcsec for precise alignment.
- Clear aperture: >90% maximizes light transmission efficiency.
- Customizable support for OEM, ODM, and OBM projects.
Applications
Thermal Imaging, Medical
Specification Summary
| Item | Value |
|---|---|
| Material | ZnSe |
| Shape | Round |
| Diameter | Custom |
| Thickness | 0.5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | LWIR (8-14 μm), MWIR (3-5 μm), SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Flat Window |
| Customized Support | OEM, ODM, OBM |
| Warranty | unavailable |
| Weight | as request |
| Flatness | 2 Lambda - Lambda/8 @632.8nm |
| Parallelism | < 3 arcmin - 3 arcsec |
| Clear Aperture | >90% |
| Chamfer | protective chamfer |
FAQ
Can I get custom sizes for the ZnSe windows?
Yes, custom sizes are available to fit specific application requirements.
What is the minimum order quantity (MOQ)?
The MOQ is not specified; please inquire for details.
